Folding Container House
+86 15615948888
+86 15615948888
admin@admin.com
Inquiry Now

Product Parameters

Basic featureExternal dimension(mm)5800 L * 2480 W * 2896H
Internal dimension(mm)5640 L * 2320 W * 2400 H
Folding state (mm)5800L*2480W*410H
Total mass (kg)1000
Frame structureTop girderQ235B rectangular square tube 70 脳 seventy 脳 1.3mm
Bottom girderQ235B rectangular square tube 70 脳 one hundred and fifty 脳 1.3mm
Bottom front and rear main beamsQ235B rectangular square tube 60 脳 eighty 脳 1.3mm
Side wall frameQ235B rectangular square tube 50 脳 seventy 脳 1.3mm (P-type pipe)
Top and bottom bearingQ235B rectangular square tube 40 脳 forty 脳 1.3mm
Top front and rear main beamsQ235B rectangular square tube 50 脳 seventy 脳 1.3mm (P-type pipe)
Hanging headQ235B 155*110*(3mm)
Fold hingeHinge 13m
Box topProtective coating for integral frameElectrostatic spray/high gloss
External roof panelColor steel plate 0.4mm (profiled corrugated
Internal ceilingColor steel veneer V910 * 0.25 m
wallboardInsulating glass woolGlass wool roll 50 mm (unit weight 16 kg)
flank50mm composite plate 0.23mm+basalt rock wool (volume weight 50kg)+0.23mm
Front and rear wall panels65mm composite plate 0.23mm+basalt rock wool (unit weight 50kg)+0.23mm
floor boardCement floor 15mm
electrical systemElectrical wiring shall be installed in strict accordance with moisture-proof specifications. All electrical products shall comply
with CE certification. Connect the circuit according to the circuit engineering specification, indoor: incoming line 4 虏 National
standard flexible copper wire, 1 20A circuit breaker, 2.5 socket incoming line 虏, One five-hole single-hole socket, one five-hole
socket plus switch, one air conditioning socket and one lamp
Ordinary anti-theft doorHigh quality anti-theft door (warm white) size: 860mm * 1970mm
window930 * 930 plastic steel anti-theft integrated window, glass thickness 4mm (warm white)
quality assuranceThe whole box meets the Class A fire protection standard.

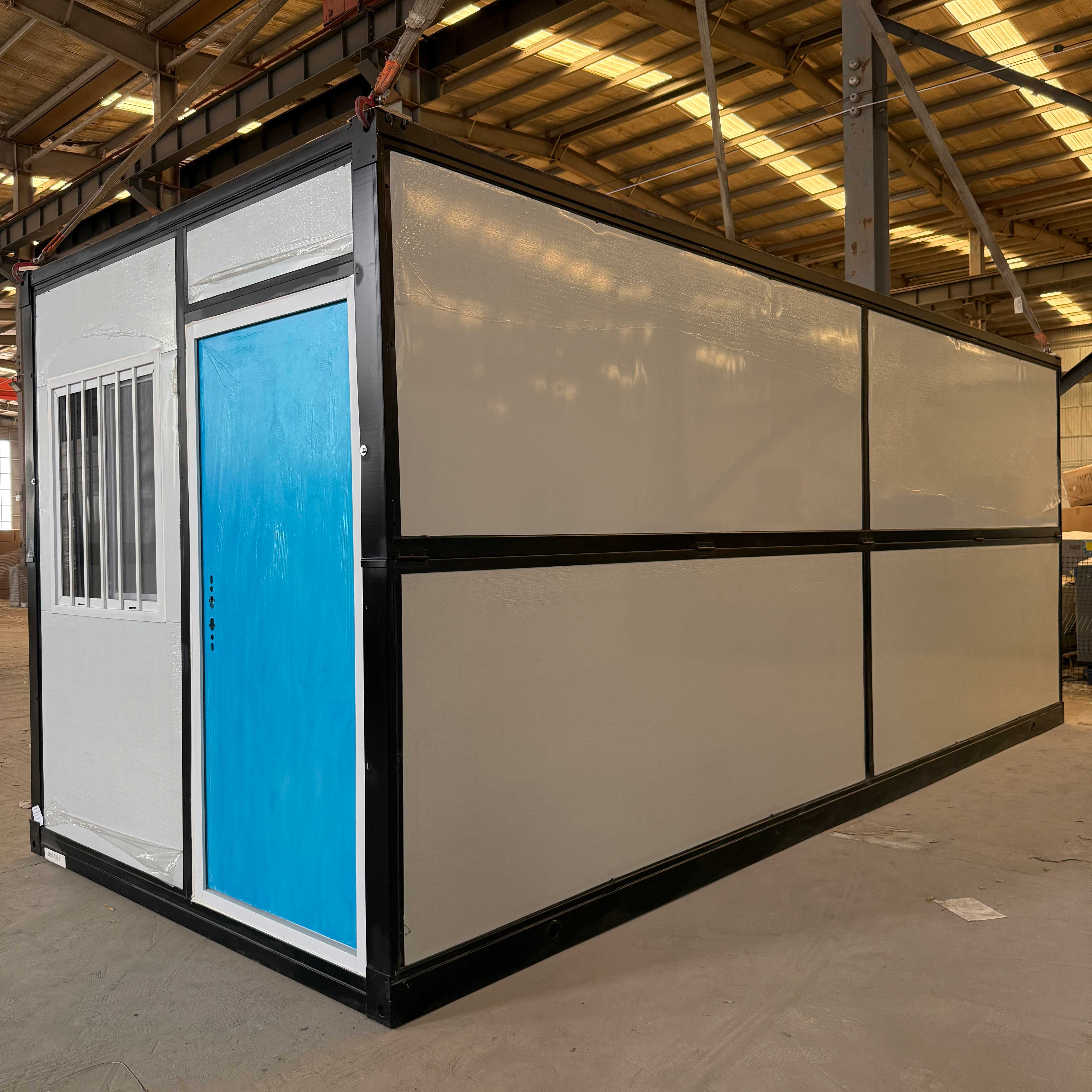

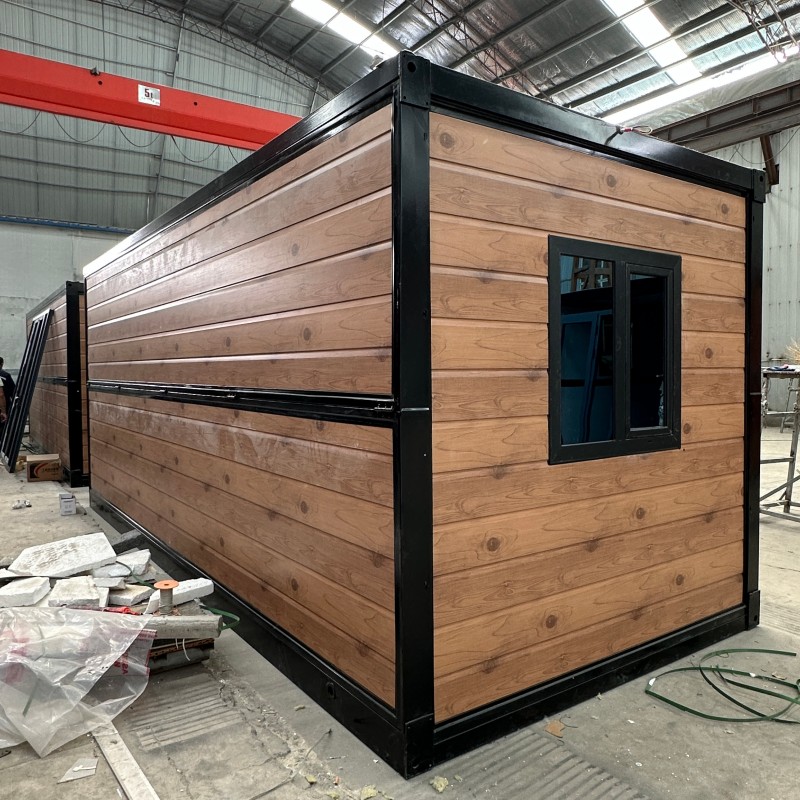

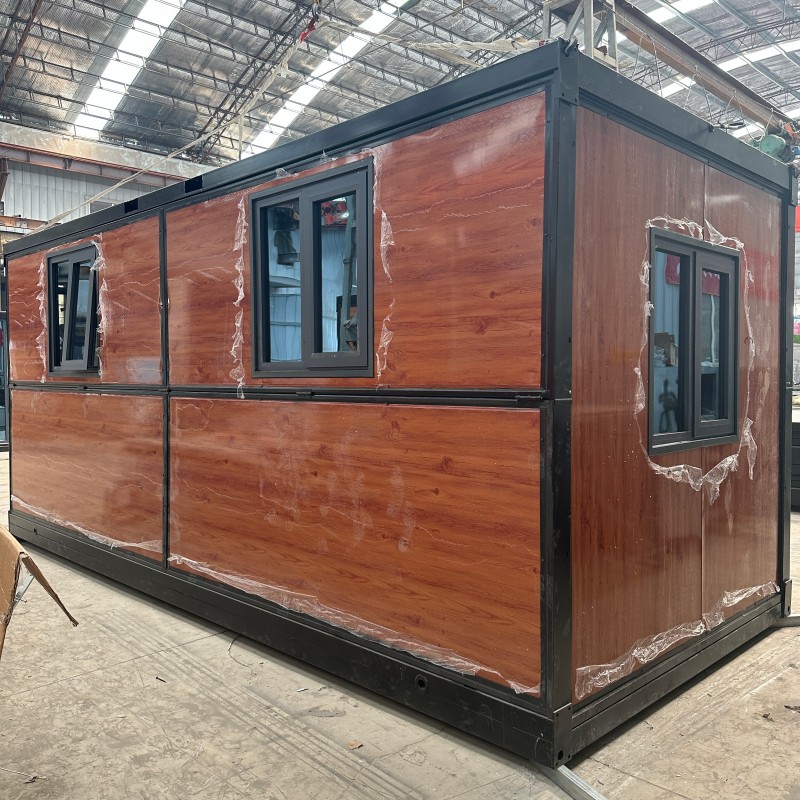

Product Display

折叠箱

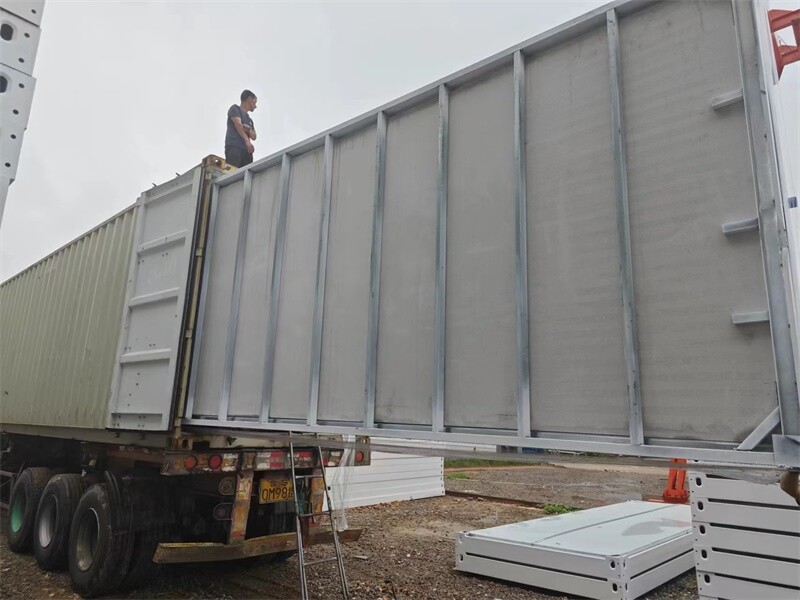

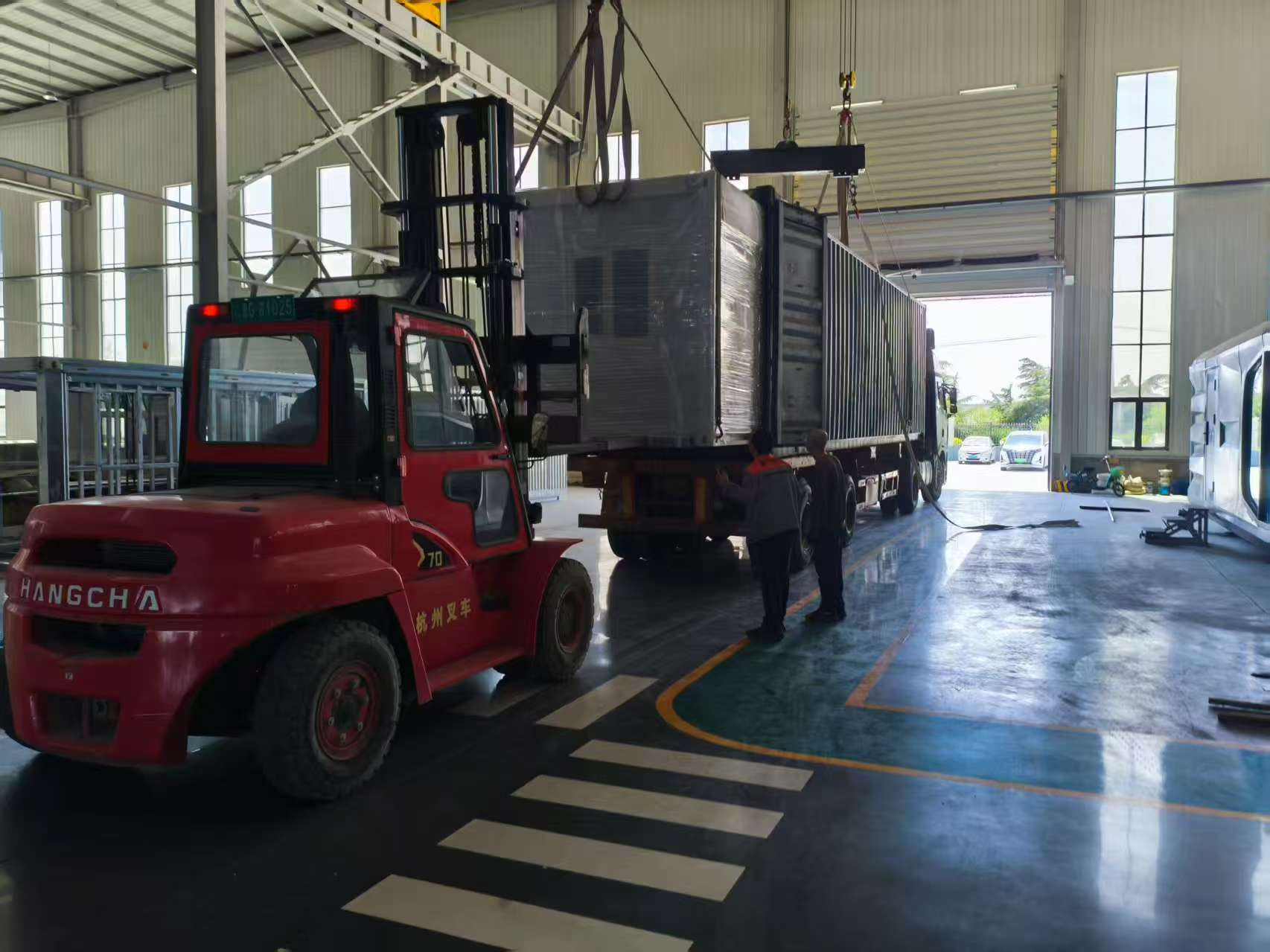

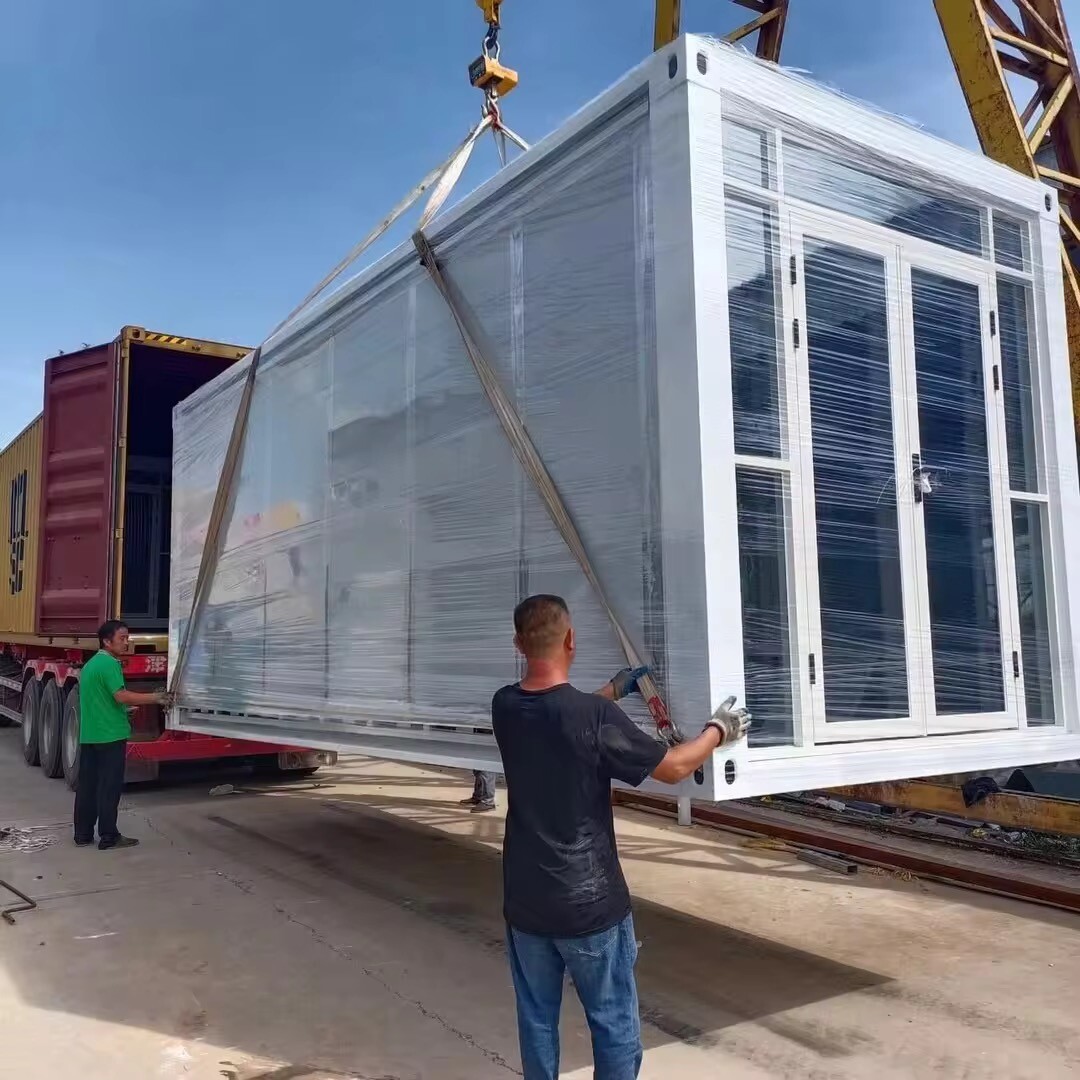

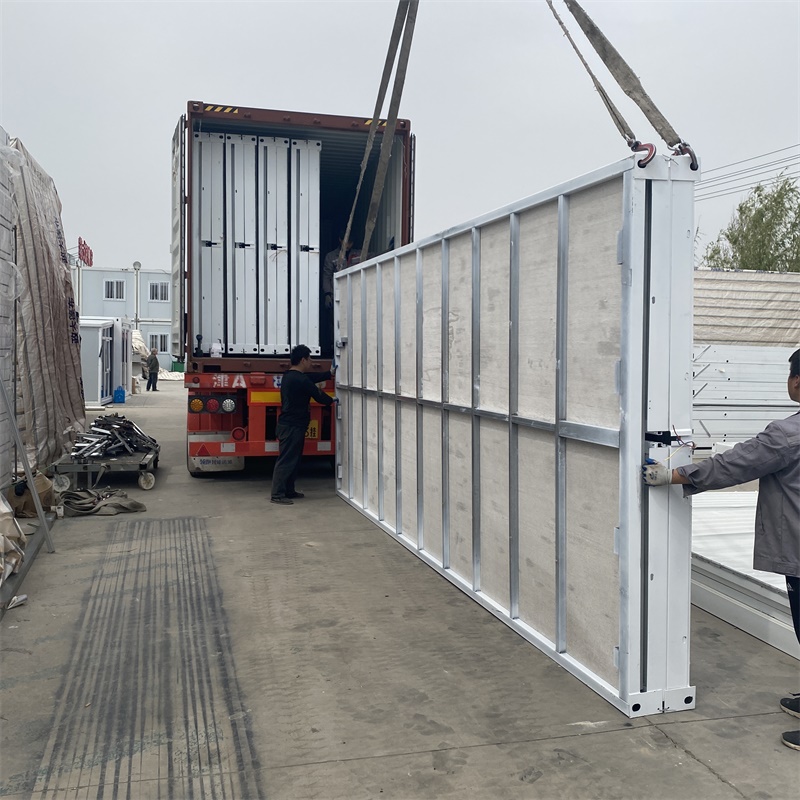

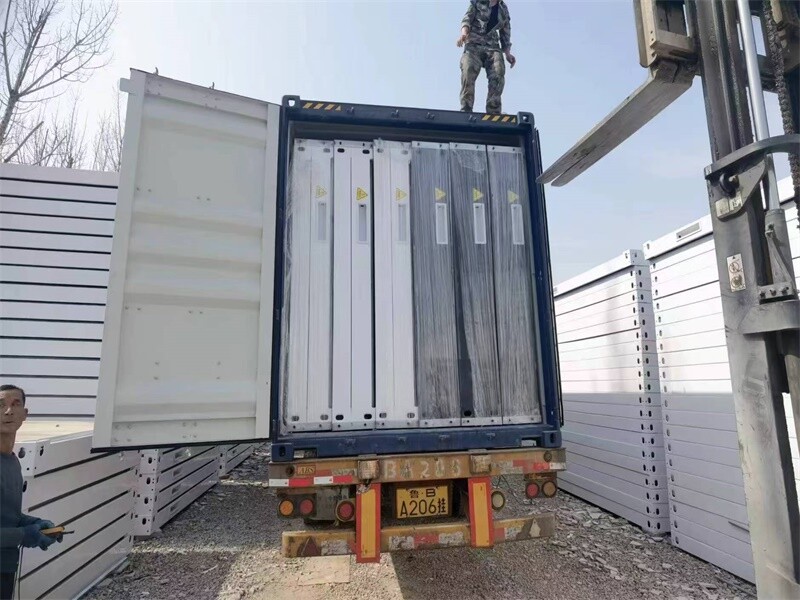

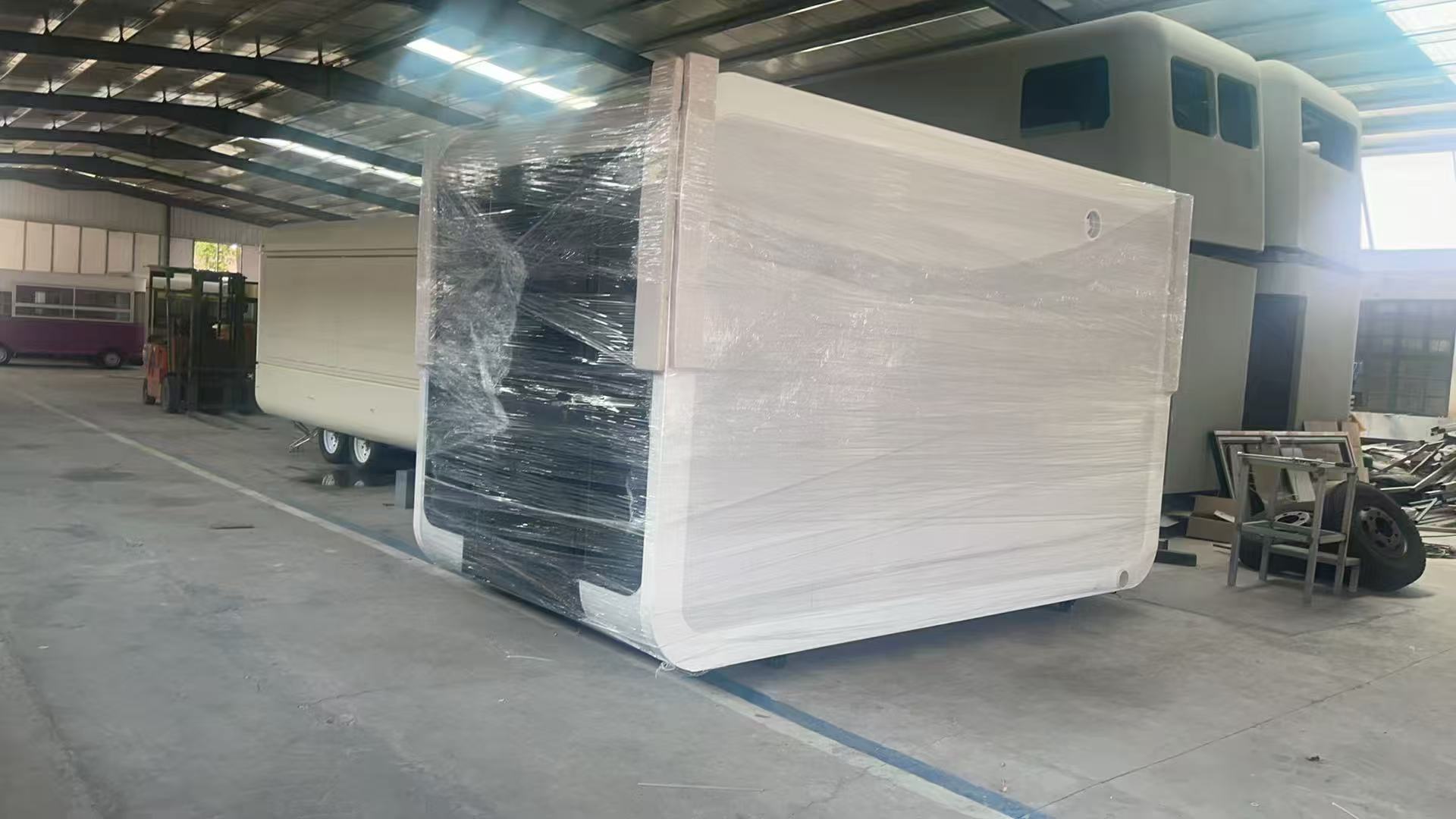

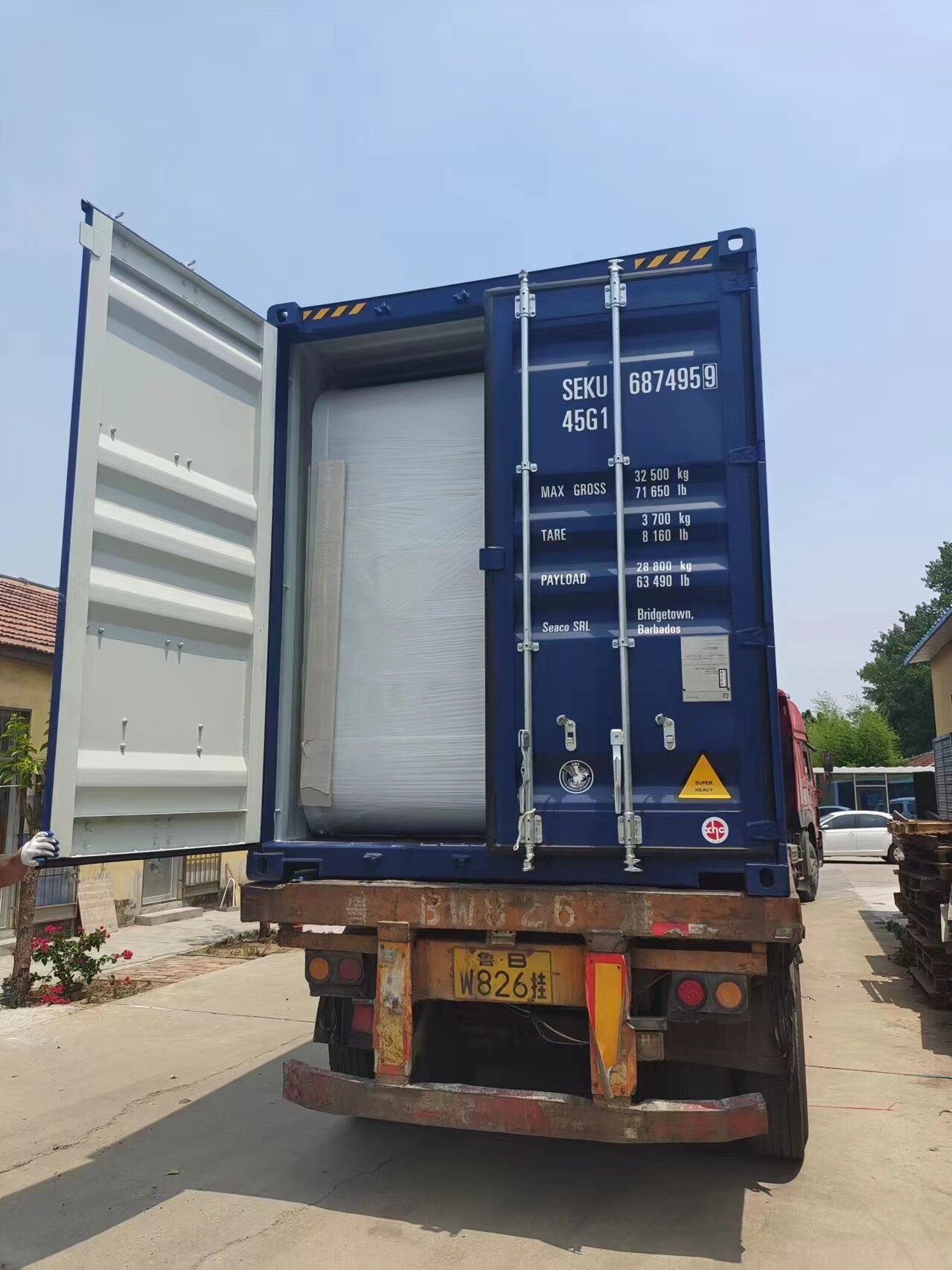

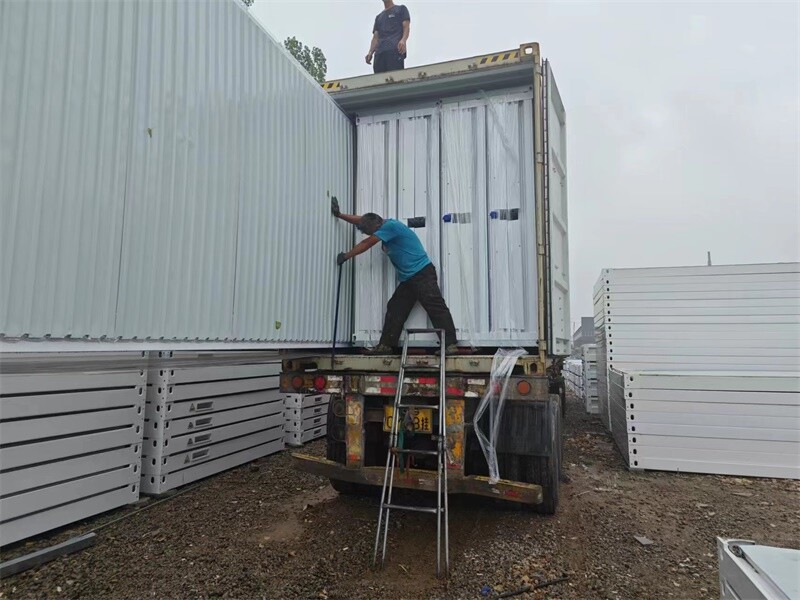

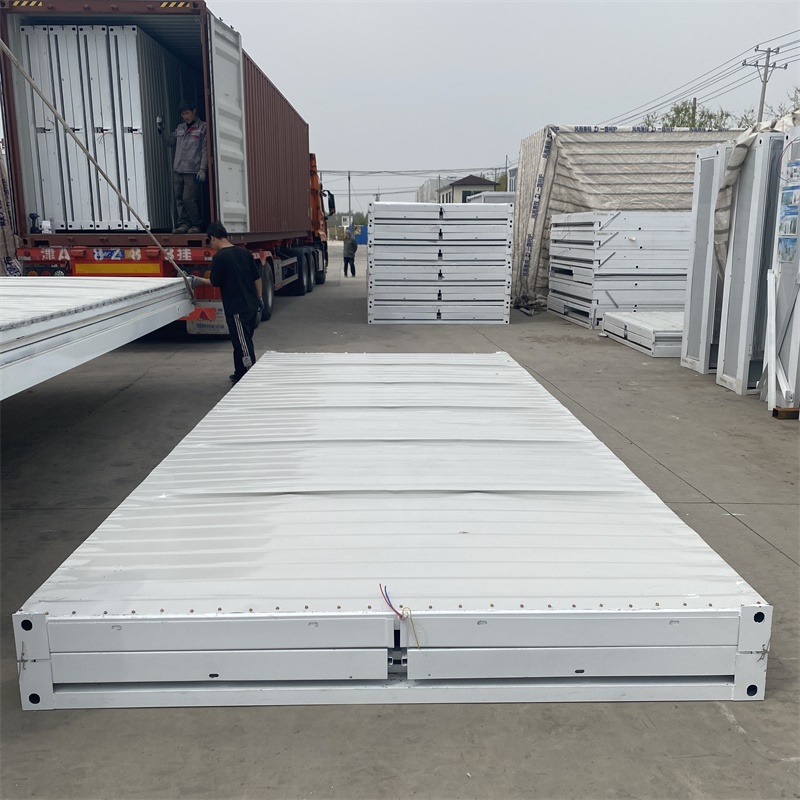

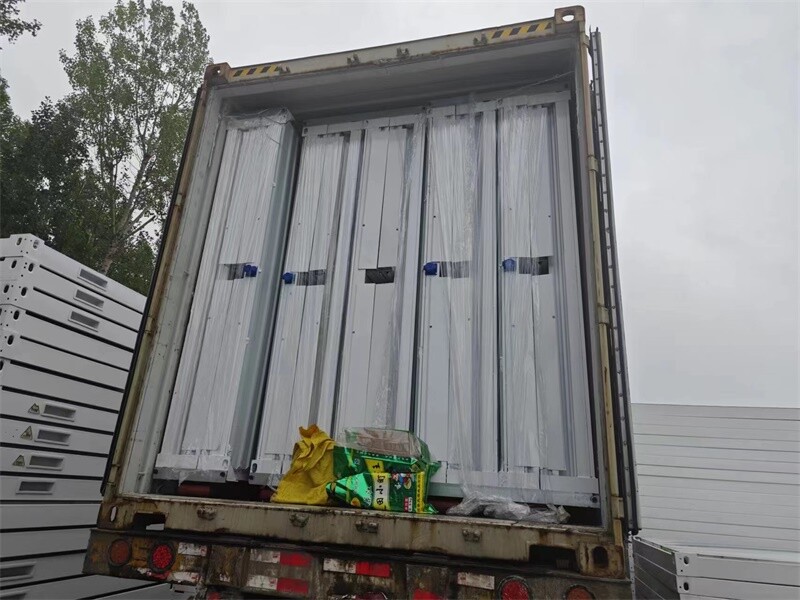

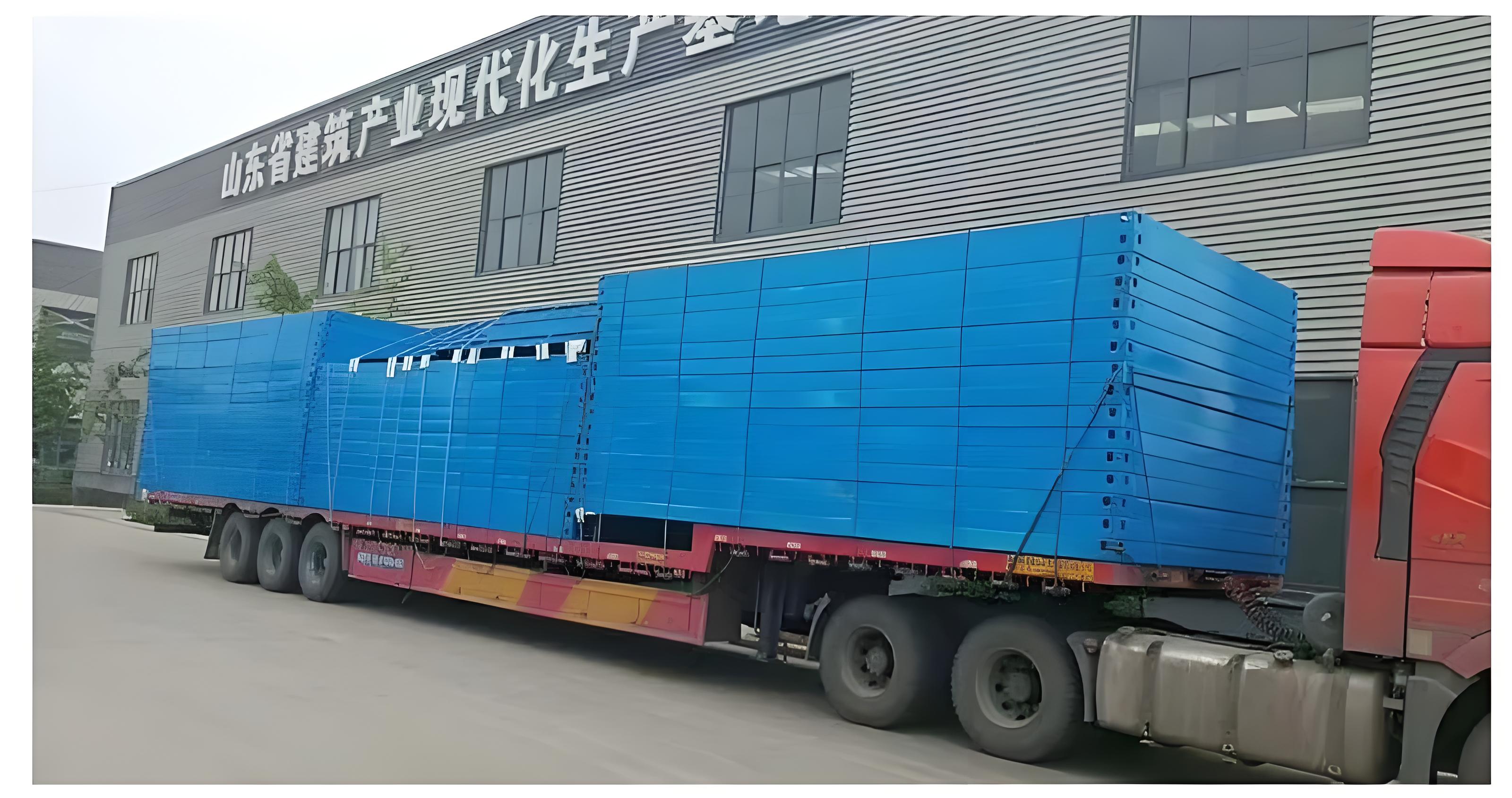

Packaging and Transportation

  • 2
  • 1
  • 3
  • mmexport1705541370674
  • 0132折叠房装柜 (3)
  • 0132折叠房装柜 (2)
  • 14
  • 5
  • 微信图片_20250703144404
  • 微信图片_20250703144400
  • 微信图片_20250703144351
  • 微信图片_20250703144335

Factory Show

  • FACTORY (16)
  • FACTORY (3)
  • FACTORY (29)
  • FACTORY (27)
  • FACTORY (26)
  • FACTORY (25)

Customer Visit

  • bf938e4c14328610ce787c9ffc99d64
  • bcbe289fc73c3bed5a0e0fc6cab6cda
  • b05dca9419974441b51ac7e54a43268
  • b04c159a49f59db0b955ecbda57e7b7
  • 97880f760274205273c7bb4bd8df8a5
  • 78112a14378b2c68f779afc6b461772
  • 7813abf104e2b403538b7fc339735db
  • 701c22cbe7c71f08c4b8b5cc245d5fd
  • 67b700a5283c06cc55a6eb017f5bbd4
  • 04d84ef3d1d7fc8155df655a13face9
  • 3ce3aed6cd86ba98bde23b59c4888b8
  • 2d0bd53dd83cf5246e660428d3356e3
  • fcf0bf4fbe97add6b6fa6102c303c2e
  • f80b0b04d0015fb65e9e426ba85ae24
  • f7baecaa7068bc1ac9ad40169ff1fa2
  • e6ccce61e14d83bde53ce61a27f9838
  • d587eb094a71e838284d1448df456b8
  • d88d6fcf65d055d943f24ecd147d47a
  • cfce132ca145d97d0a56b6f8702b845
  • c274925ff4306111eb4e2f258e12d06
  • c3fa6b6b054b72100158ebbf9e21110
  • c7dc1165c60c3359c6cf05e83a0cd8e
  • c10cdad0fa03b525359358c3eba1c49

FAQ

1. Q:Do you provide on-site installation service?
A:We provide very detailed installation instrution drawings and videos for every project. For large projects, we will have both installation workers and supervisiors on site. The fee for the on-site service should be negotiated with clients.
2.Q: How about your delivery time?
A: Normally, the delivery time is as follows: Prefab house: 7-15days, Con-
tainer house:10-15days,Steel structure:
30-35days,Portable Toilet: 5-10days.
3.Q:What about the Month Capacity?
A: Prefab house: 100,000m2, Container house: 1000units, Steel structure:
2000tons,Portable Toilet: 2000units.
4.Q:What's the minimum order?
A: Prefab house: 100m2,Container house: 3units, Steel structure: 200m2
Portable Toilet:5units.
5.Q:What's you payment terms?
A: T/T;Cash;LC.For standard products:30% deposit before delivery,70% bal-ance before delivery.Customized Products:Depands on the design.
6.Q: What kind of technical drawings could you provide?
A: We could provide three-view drawing, 3D picture, blueprint, founda-tion,plumbing,electrical,communication, fire alarm,installation, furniture and so on.
7.Q: What is the lifespan and warranty period?
A: The lifespan for Prefab house is 10 to 15years, Container house is 15-20years,Steel structure is 30-50years and Villa is50-90years. The warranty period for all the house is 12months from the delivery.
8.Q: What designs do you have in different climates (How can the products adopt to different climates)?
A: Strong wind region: improve the wind-resisting ability of the internal structure. Cold region: increase the thickness of the wall, or use good insulation material, improve anti-pressure ability of the structure. High corrosion region: use corrosion resistant material, or paint anticorrosive coating.
