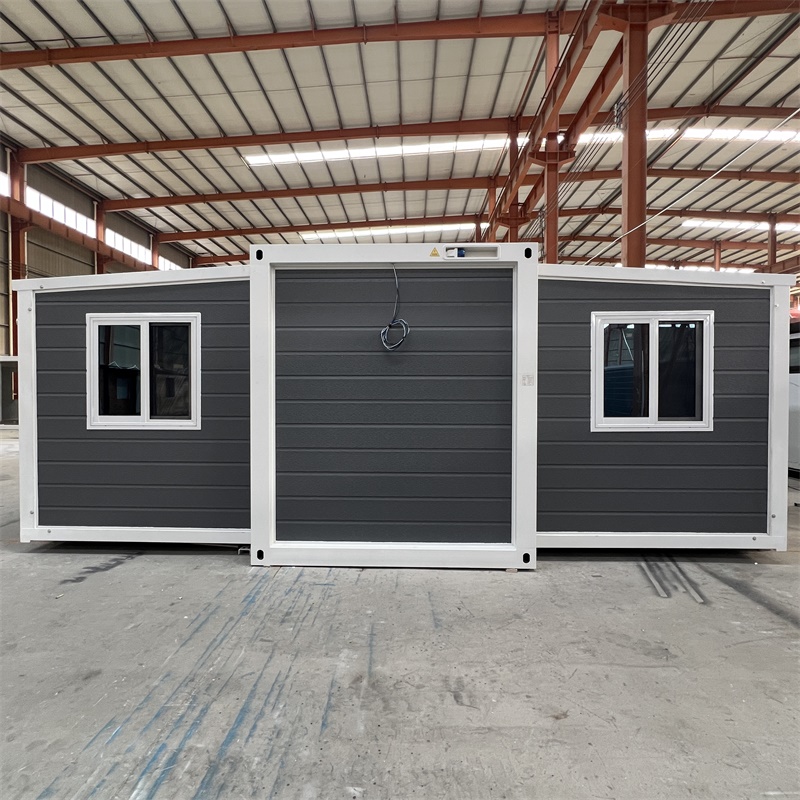

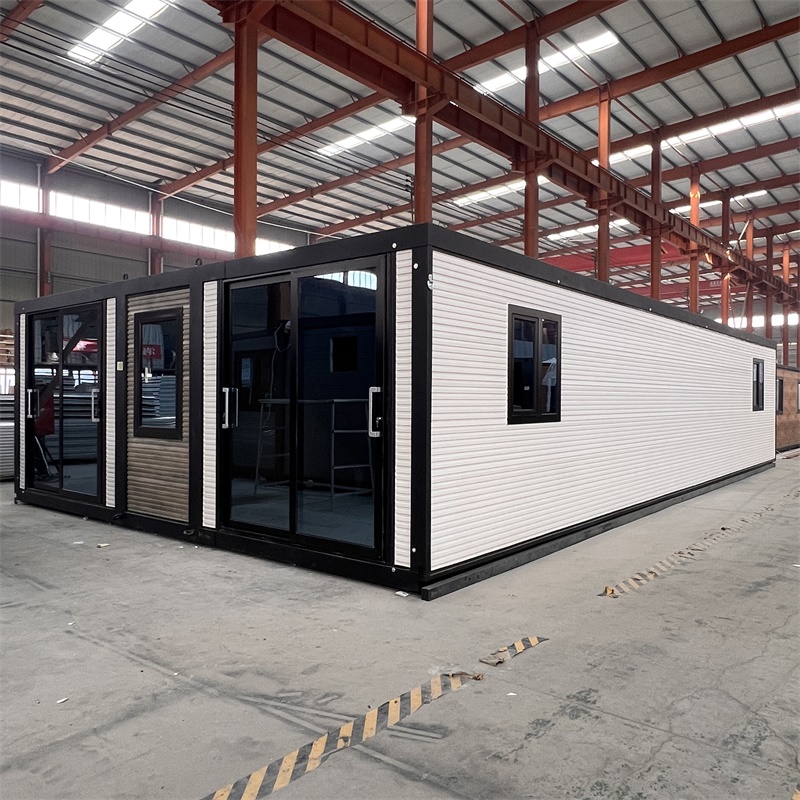

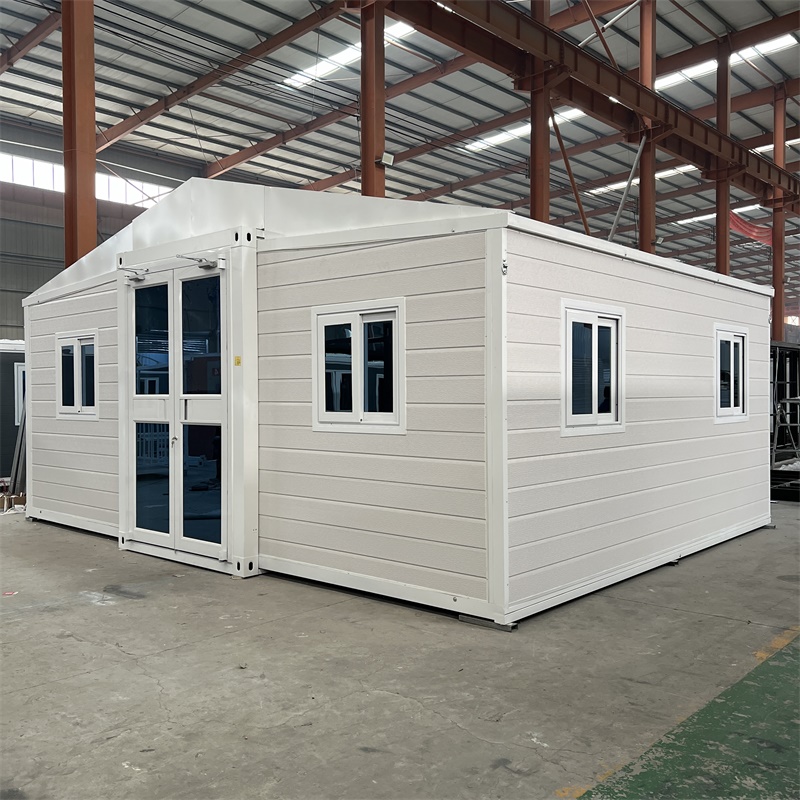

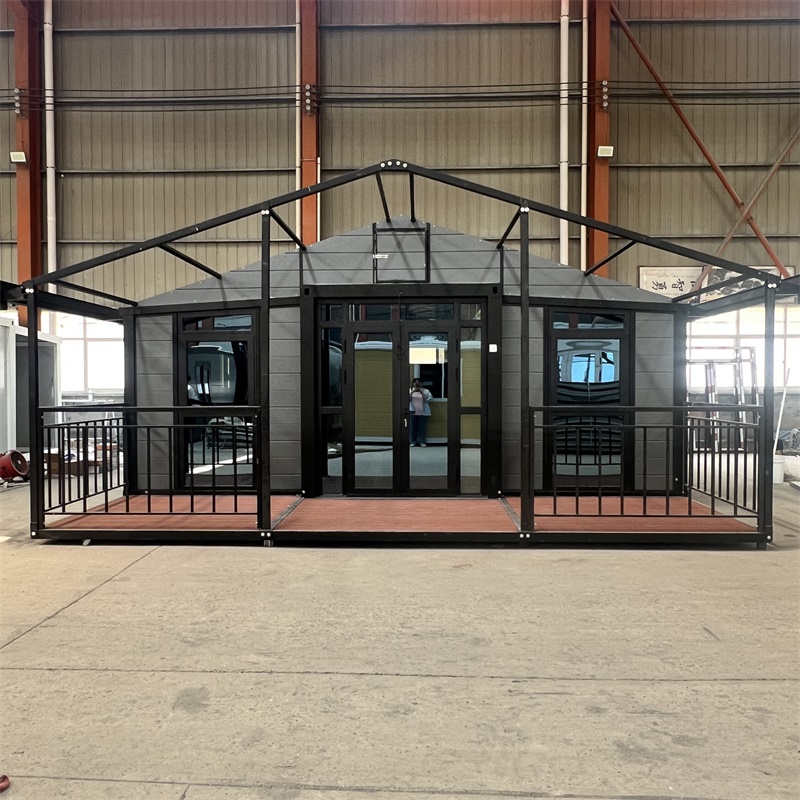

Expandable Container house
+86 15615948888
+86 15615948888
admin@admin.com
Inquiry Now

Product Parameters

Basic featureProduct model20 feetHouse typeOne Hall
Expanded sizeL5900*W6300*H2480Number of people2-4 people
accommodated
InternalL5460*W6140*H2240Power12kW
dimensionsconsumption
Folded SizeL5900*W2200*H2480Total net weight2.8 tons
Floor area37m
Frame structure
NameContentSpecifications
Main frameTop side beam80*100*2.5mm Square tube
(fully galvanized)Top beamBending parts 2.0mm

Bottom side beam80*100*2.5mm Square tube

Bottom beamBending parts 2.0mm

Galvanized hanging headGalvanized hanging head 210*150*160

Steel columnBending parts 2.0mm
Side frameTop frame40*80*1.5mm P-shaped tube
(fully galvanized)40*80*1.5mm Square tube

Bottom frame60*80*2.0mm Square tube

Folding hinge130mm Galvanized hinge
Overall frameworkSprayElectrostatic spray molding/straight white plastic powder
protective coating
RoofExternal top plateT50mm EPS color steel plate+corrugated veneer t0.4mm
Internal ceiling panels200 type ceiling panel
WallboardSide walls, front and rearT65mm EPS color steel plate
Inner partition boardT50mm EPS color steel plate
GroundCenter floor18mm thick fireproof cement fiber floor
Floor on both sidesBamboo plywood 18mm thick
Doors and windowsPlastic steel sliding window920*920mm
Steel single door840*2030mm
Electrical systemCircuit breaker systemOne 32A leakage protector Voltage 220V, 50HZ
LightBull 3030 flat lamp, large ceiling lamp
SocketStandard international three hole and five hole sockets
(socket standards can be configured according to customer requirements)
Light SwitchDouble open, single key switch
(switch standard can be configured according to customer requirements)
WiringIncoming Line 6,Air conditioning socket 4,Ordinary socket 2.5,
Lighting 1.5.(Circuit that meets certification requirements can be
customized according to the country)
Loading Quantity1 40HQ shipping container can hold 2 sets

Product Display

拓展箱

Packaging and Transportation

  • 2
  • 1
  • 3
  • mmexport1705541370674
  • 0132折叠房装柜 (3)
  • 0132折叠房装柜 (2)
  • 14
  • 5
  • 微信图片_20250703144404
  • 微信图片_20250703144400
  • 微信图片_20250703144351
  • 微信图片_20250703144335

Factory Show

  • FACTORY (16)
  • FACTORY (3)
  • FACTORY (29)
  • FACTORY (27)
  • FACTORY (26)
  • FACTORY (25)

Customer Visit

  • bf938e4c14328610ce787c9ffc99d64
  • bcbe289fc73c3bed5a0e0fc6cab6cda
  • b05dca9419974441b51ac7e54a43268
  • b04c159a49f59db0b955ecbda57e7b7
  • 97880f760274205273c7bb4bd8df8a5
  • 78112a14378b2c68f779afc6b461772
  • 7813abf104e2b403538b7fc339735db
  • 701c22cbe7c71f08c4b8b5cc245d5fd
  • 67b700a5283c06cc55a6eb017f5bbd4
  • 04d84ef3d1d7fc8155df655a13face9
  • 3ce3aed6cd86ba98bde23b59c4888b8
  • 2d0bd53dd83cf5246e660428d3356e3
  • fcf0bf4fbe97add6b6fa6102c303c2e
  • f80b0b04d0015fb65e9e426ba85ae24
  • f7baecaa7068bc1ac9ad40169ff1fa2
  • e6ccce61e14d83bde53ce61a27f9838
  • d587eb094a71e838284d1448df456b8
  • d88d6fcf65d055d943f24ecd147d47a
  • cfce132ca145d97d0a56b6f8702b845
  • c274925ff4306111eb4e2f258e12d06
  • c3fa6b6b054b72100158ebbf9e21110
  • c7dc1165c60c3359c6cf05e83a0cd8e
  • c10cdad0fa03b525359358c3eba1c49

FAQ

1. Q:Do you provide on-site installation service?
A:We provide very detailed installation instrution drawings and videos for every project. For large projects, we will have both installation workers and supervisiors on site. The fee for the on-site service should be negotiated with clients.
2.Q: How about your delivery time?
A: Normally, the delivery time is as follows: Prefab house: 7-15days, Con-
tainer house:10-15days,Steel structure:
30-35days,Portable Toilet: 5-10days.
3.Q:What about the Month Capacity?
A: Prefab house: 100,000m2, Container house: 1000units, Steel structure:
2000tons,Portable Toilet: 2000units.
4.Q:What's the minimum order?
A: Prefab house: 100m2,Container house: 3units, Steel structure: 200m2
Portable Toilet:5units.
5.Q:What's you payment terms?
A: T/T;Cash;LC.For standard products:30% deposit before delivery,70% bal-ance before delivery.Customized Products:Depands on the design.
6.Q: What kind of technical drawings could you provide?
A: We could provide three-view drawing, 3D picture, blueprint, founda-tion,plumbing,electrical,communication, fire alarm,installation, furniture and so on.
7.Q: What is the lifespan and warranty period?
A: The lifespan for Prefab house is 10 to 15years, Container house is 15-20years,Steel structure is 30-50years and Villa is50-90years. The warranty period for all the house is 12months from the delivery.
8.Q: What designs do you have in different climates (How can the products adopt to different climates)?
A: Strong wind region: improve the wind-resisting ability of the internal structure. Cold region: increase the thickness of the wall, or use good insulation material, improve anti-pressure ability of the structure. High corrosion region: use corrosion resistant material, or paint anticorrosive coating.
