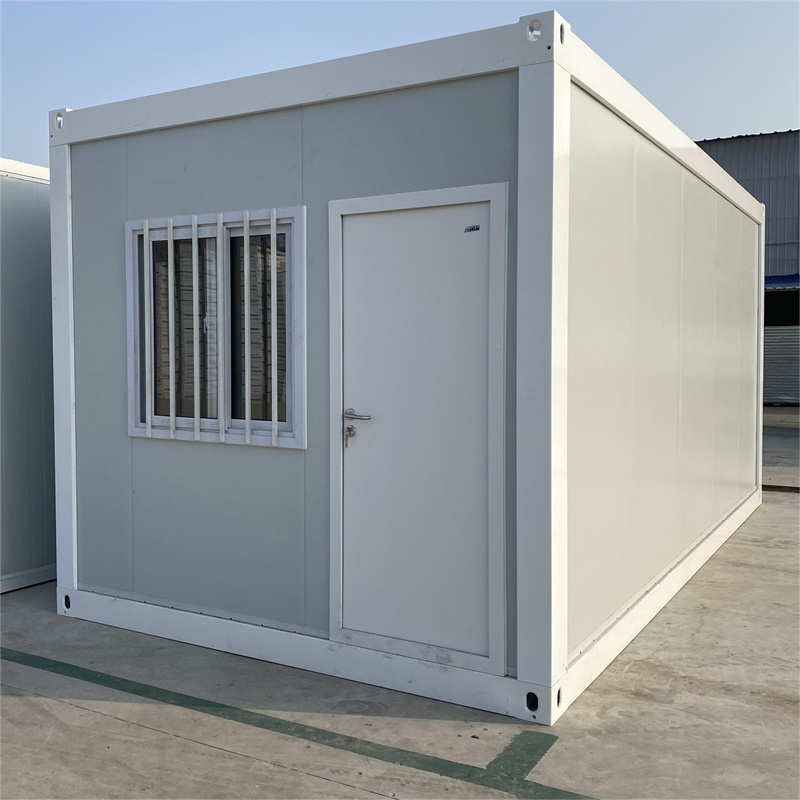

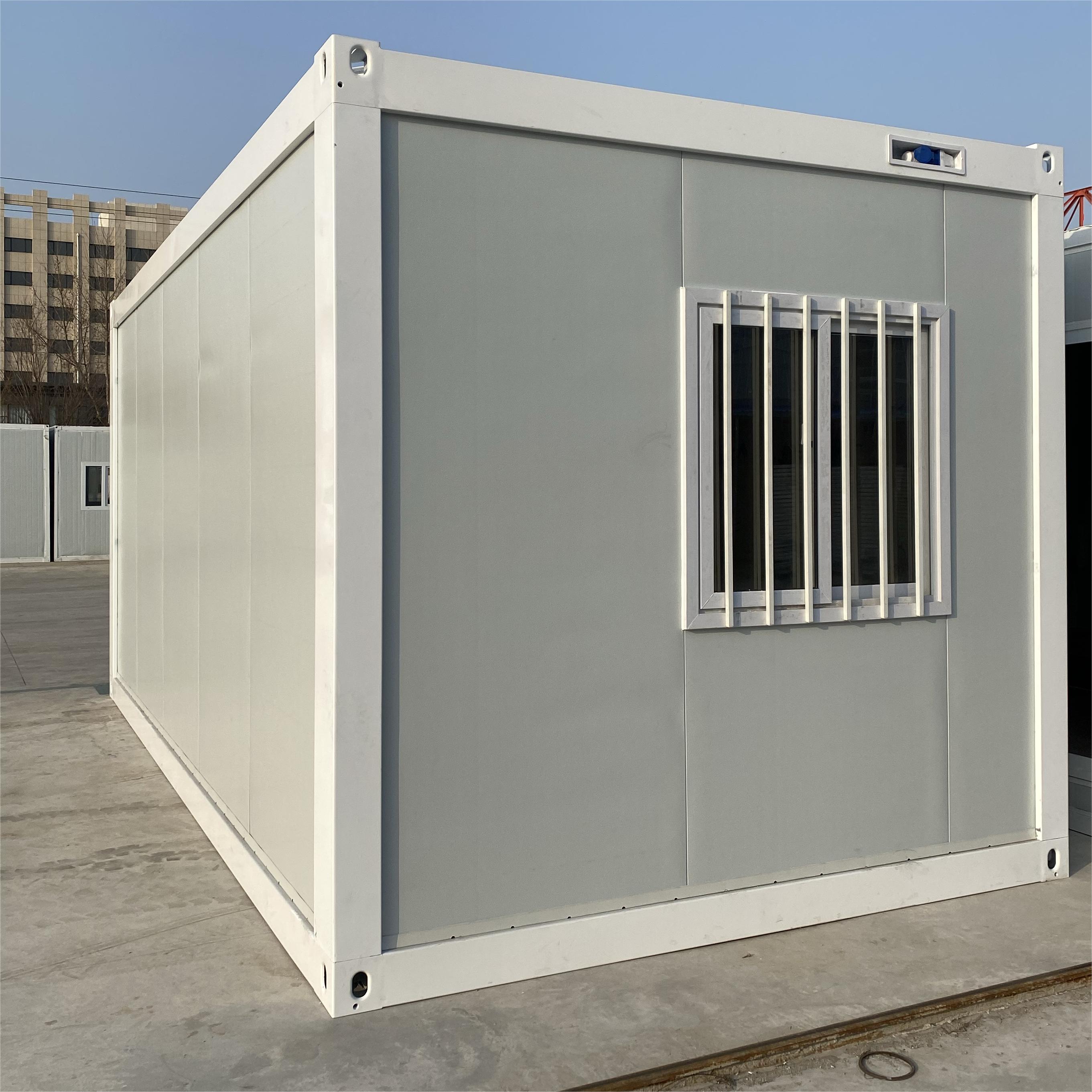

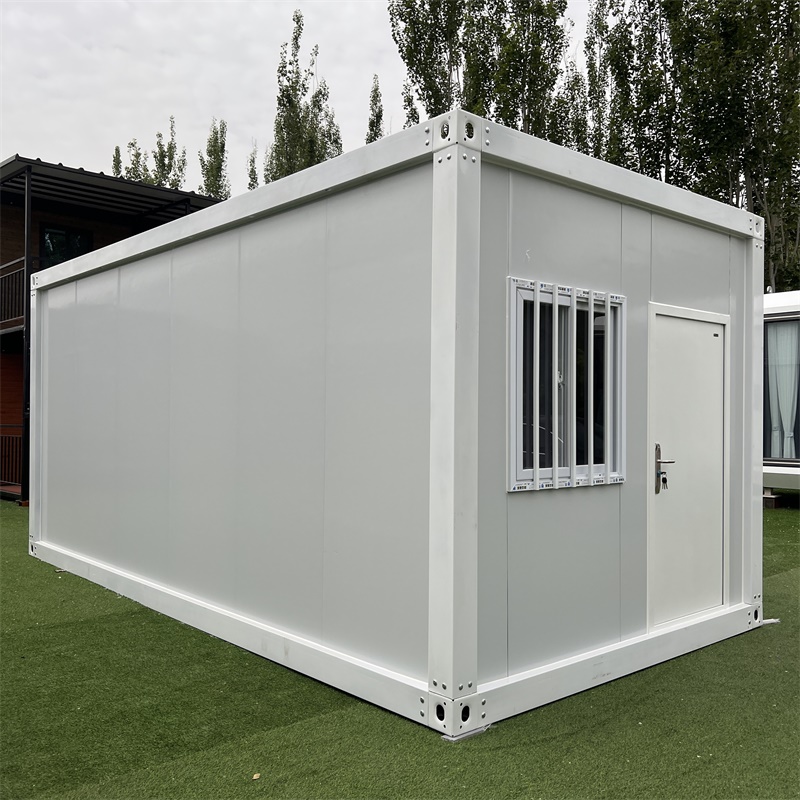

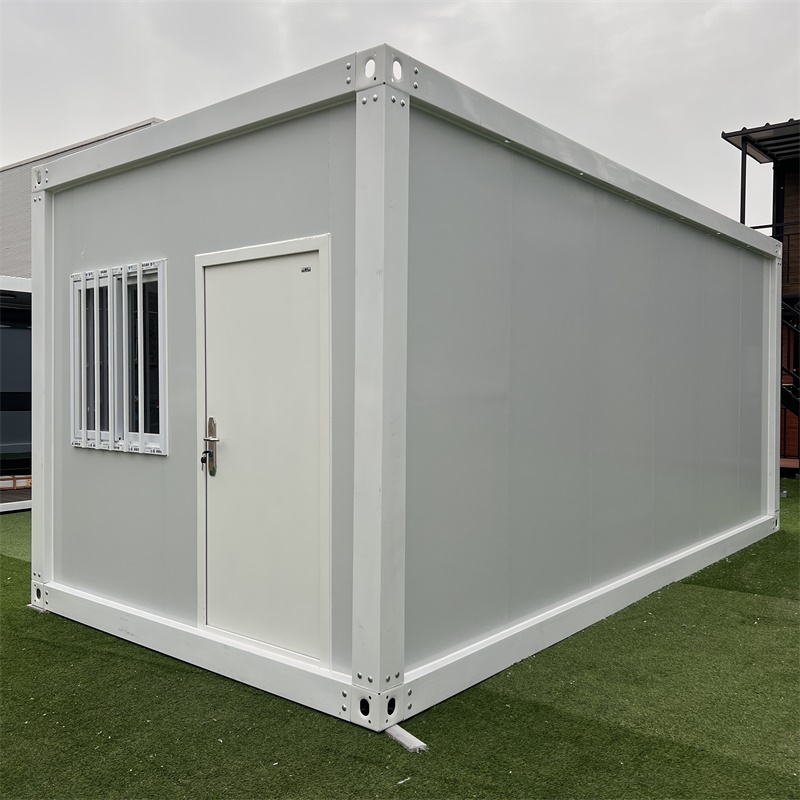

Flat-pack Container House
+86 15615948888
+86 15615948888
admin@admin.com
Inquiry Now

Product Parameters

SizeLength6.055m
Width2.990m
Height2.896m
AreaExternal area18.1m
Design ParametersWall thickness75mm thick orange peel color steel rock wool sandwich panel, color coated steel plate 0.4mm thick, outer orange peel pattern inner
plate, white gray, rockwool bulk density 60kg/m
Ground live load2.0KN/m
Roof live load0.5K
Wind load0.6KN/m
Number of layers≤3layers
Roof formFlat roof, drainage in gutter tissue around the top
Structural design service life≥20years
Seismic fortification intensity8 degrees
StructureCorner postHot-dip galvanized steel, t=3.0mm
Roof main beamHot-dip galvanized steel, t=3.0mm
Roof secondary beamHot-dip galvanized cold-formed C-shaped steel, t=1.5mm
Ground main beamHot-dip galvanized steel, t=3.5mm
Ground secondary beamHot-dip galvanized cold-formed C-shaped steel, t=2.0mm
PaintingWater-based paint, 30-60m
RoofRoof panel0.4mm thick galvanized color steel plate, the color is white and gray
Insulation board100mm thick single-sided aluminum foil glass wool, bulk density 12kg/m, combustion performance is Class A non-combustible
Ceiling boardProfiled color steel strip ceiling, 0.5mm thick galvanized color steel, white gray
FloorDecorative panel2.0mm thick PVC coiled floor, white gray
Substrate18mm thick cement fiberboard, density>1.3g/cm
Insulation board100mm thick single-sided aluminum foil glass wool, bulk density 12kg/m, combustion performance is Class A non-combustible
Bottom cover0.3mm thick galvanized color steel plate, the color is white and gray
WallThickness75mm thick orange peel pattern color steel rock wool sandwich panel, color coated steel plate 0.4mm thick, outer orange peel
pattern inner plate, white gray
Keep warm75mm thick glass wool, bulk density 60kg/m, combustion performance is Class A non-combustible
DoorSpecificationWidth * height: 840*2035
MaterialSteel door
WindowSpecificationWidth * height: 1110*1100 (front)/1500*1100 (rear)
Frame materialPlastic steel sliding window, 88 series
GlassHollow glass
Decorative MoldingsRooofGalvanized steel strips, white and gray in color
CornerColor coated steel plate, t=0.5mm, color white and gray
GroundColor coated steel plate, t=0.8mm, color white and gray
ElectricityVoltage220V~250V
WireTotal square home power line 6, air conditioning lines 4 square, the line 2.5 square socket, light switch line 1.5 square
BreakerMCB (GB)
Light tubeTwo groups of double-tube LED lights, each 30W, one switch
SocketThree socket (GB)
WaterWater supplyPPR
Water drainUPVC
SupportingCanopy50mm thick color steel polystyrene board (including bracket) size: 2990*1270
LCLSteel plate + black rubber pad + M20 bolts; LCL rubber strips, EPDM rubber strips; LCL color steel profiled parts; aluminum alloy
expansion joints
Stairs16#C-shaped steel beam, pattern steel step, square tube railing
Walkway board80*40*1.8 rectangular square tube, 80*45*2 C-shaped steel, pattern steel step

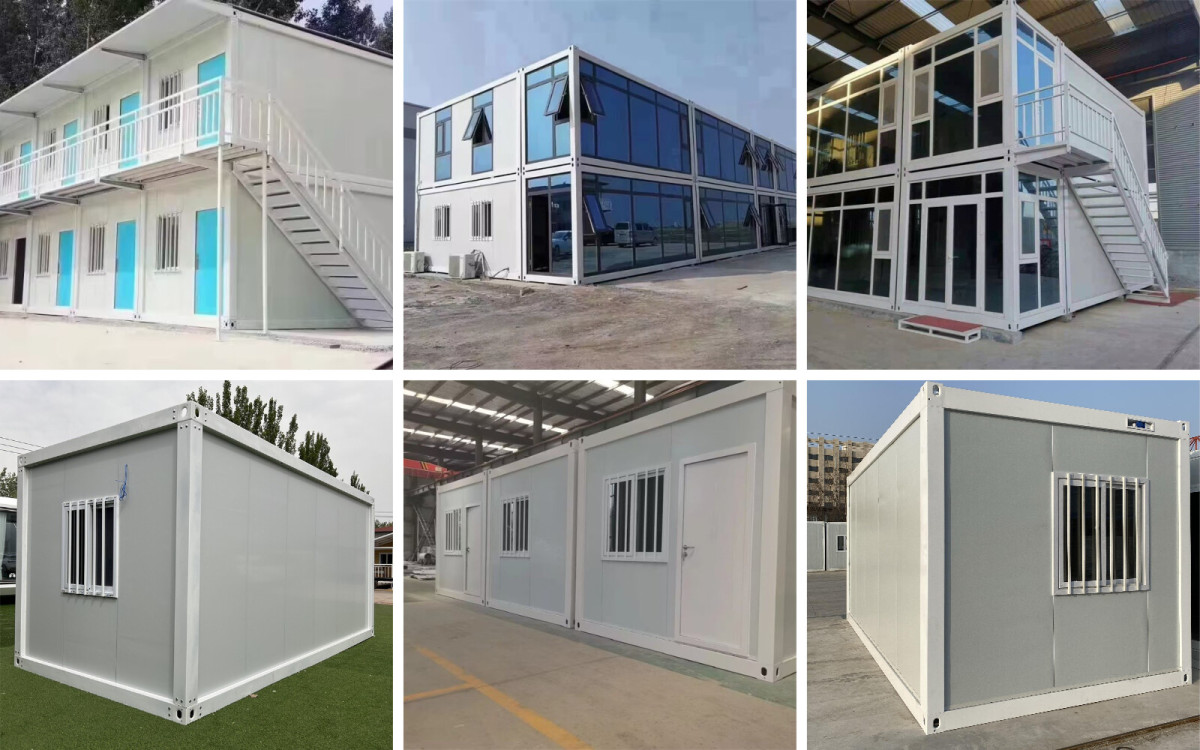

Product Display

打包箱

Packaging and Transportation

  • 2
  • 1
  • 3
  • mmexport1705541370674
  • 0132折叠房装柜 (3)
  • 0132折叠房装柜 (2)
  • 14
  • 5
  • 微信图片_20250703144404
  • 微信图片_20250703144400
  • 微信图片_20250703144351
  • 微信图片_20250703144335

Factory Show

  • FACTORY (16)
  • FACTORY (3)
  • FACTORY (29)
  • FACTORY (27)
  • FACTORY (26)
  • FACTORY (25)

Customer Visit

  • bf938e4c14328610ce787c9ffc99d64
  • bcbe289fc73c3bed5a0e0fc6cab6cda
  • b05dca9419974441b51ac7e54a43268
  • b04c159a49f59db0b955ecbda57e7b7
  • 97880f760274205273c7bb4bd8df8a5
  • 78112a14378b2c68f779afc6b461772
  • 7813abf104e2b403538b7fc339735db
  • 701c22cbe7c71f08c4b8b5cc245d5fd
  • 67b700a5283c06cc55a6eb017f5bbd4
  • 04d84ef3d1d7fc8155df655a13face9
  • 3ce3aed6cd86ba98bde23b59c4888b8
  • 2d0bd53dd83cf5246e660428d3356e3
  • fcf0bf4fbe97add6b6fa6102c303c2e
  • f80b0b04d0015fb65e9e426ba85ae24
  • f7baecaa7068bc1ac9ad40169ff1fa2
  • e6ccce61e14d83bde53ce61a27f9838
  • d587eb094a71e838284d1448df456b8
  • d88d6fcf65d055d943f24ecd147d47a
  • cfce132ca145d97d0a56b6f8702b845
  • c274925ff4306111eb4e2f258e12d06
  • c3fa6b6b054b72100158ebbf9e21110
  • c7dc1165c60c3359c6cf05e83a0cd8e
  • c10cdad0fa03b525359358c3eba1c49

FAQ

1. Q:Do you provide on-site installation service?
A:We provide very detailed installation instrution drawings and videos for every project. For large projects, we will have both installation workers and supervisiors on site. The fee for the on-site service should be negotiated with clients.
2.Q: How about your delivery time?
A: Normally, the delivery time is as follows: Prefab house: 7-15days, Con-
tainer house:10-15days,Steel structure:
30-35days,Portable Toilet: 5-10days.
3.Q:What about the Month Capacity?
A: Prefab house: 100,000m2, Container house: 1000units, Steel structure:
2000tons,Portable Toilet: 2000units.
4.Q:What's the minimum order?
A: Prefab house: 100m2,Container house: 3units, Steel structure: 200m2
Portable Toilet:5units.
5.Q:What's you payment terms?
A: T/T;Cash;LC.For standard products:30% deposit before delivery,70% bal-ance before delivery.Customized Products:Depands on the design.
6.Q: What kind of technical drawings could you provide?
A: We could provide three-view drawing, 3D picture, blueprint, founda-tion,plumbing,electrical,communication, fire alarm,installation, furniture and so on.
7.Q: What is the lifespan and warranty period?
A: The lifespan for Prefab house is 10 to 15years, Container house is 15-20years,Steel structure is 30-50years and Villa is50-90years. The warranty period for all the house is 12months from the delivery.
8.Q: What designs do you have in different climates (How can the products adopt to different climates)?
A: Strong wind region: improve the wind-resisting ability of the internal structure. Cold region: increase the thickness of the wall, or use good insulation material, improve anti-pressure ability of the structure. High corrosion region: use corrosion resistant material, or paint anticorrosive coating.
